isUpMap

An internet-service status heatmap with incident history and community reports

isUpMap is a self-hosted Downdetector alternative built on Cloudflare (Analytics Engine, D1, KV, Queues, Workers). Paid services required. Inspect the source and license in the linked repository.

Source & license

Upstream license: MIT

License TL;DR

You can use it, change it, self-host it and sell it. Keep the original copyright and license notice with copies of the code. You don’t have to publish your changes. The authors don’t promise it will work.

Explain MIT in plain English →

Summary of the main license. Separate packages and assets can have different terms.

Inspect repository ↗Read this project’s actual license ↗

Repository owner

@Jaironlanda

See the upstream repository for the original creator and contributors.

Maintain this project? Maintainer verification →

Cloudflare hosting

Paid services required

Hosting requirements

Provide a strong VOTE_SALT, your own D1/KV/Queue resources and a production route; workers.dev is disabled in the committed config.
Optional Protomaps maps and GA4 tracking are disabled without their settings. The captured deployment has not been executed or load-tested.
Source and configuration review establishes a deployment path and conditional costs; this candidate was not executed or load-tested.

Check current pricing ↗

Sources checked 01/10/2026

Repository snapshot: 0b78646. Hosting eligibility reflects the deployment documentation and listed assumptions.

downdetector ↗
A live **up / down heatmap** for 80+ popular internet services, rendered as a stock-map style treemap with brand logos. Built on a single [Cloudflare Worker](https://developers.cloudflare.com/workers/): a **Cron Trigger** polls each service's official status and persists snapshots + an incident log to **D1**, and a static frontend renders the treemap with per-service uptime, an incident history, a command palette, light/dark themes, and a mobile-friendly detail sheet.
workers ↗
//developers.cloudflare.com/workers/wrangler/configuration/ */ { "$schema": "node_modules/wrangler/config-schema.json", "name": "cf-isupordown", "main": "src/index.ts", "compatibility_date": "2026-05-30", "assets": { // The path to the directory containing the `index.html` file to be served at `/` "directory": "./public", // Expose assets to the Worker so it can rewrite /analytics.js at the edge. "binding": "ASSETS", // Run the Worker first for this one path so it can inject the GA4
d1 ↗
database_id automatically. // For manual deploys: run `npx wrangler d1 create isupmap` and paste the id here. "d1_databases": [ { "binding": "DB", "database_name": "isupmap", "database_id": "" }, // Separate D1 for community vote data — isolated so vote storms during an // outage don't serialise behind the authoritative status writes in DB. // Create: `npx wrangler d1 create isupmap-reports` and paste the id below. { "binding": "REPORTS_DB", "database_name": "isupmap-
kv ↗
nd the /api/* routes read it, so reads never // touch D1. Replace the placeholder id below with your own — run // `npx wrangler kv namespace create SNAPSHOT_KV` and paste the id. Local dev // and tests simulate KV regardless of the id value. "kv_namespaces": [ { "binding": "SNAPSHOT_KV", "id": "00000000000000000000000000000000" } ], // Queue for buffering community vote writes. The consumer coalesces a burst // of votes into a handful of D1 inserts so the vote storm during an outage // do
queues ↗
directly from the edge. // Create: `npx wrangler queues create isupmap-votes` (+ isupmap-votes-dlq). "queues": { "producers": [ { "binding": "VOTE_QUEUE", "queue": "isupmap-votes" } ], "consumers": [ { "queue": "isupmap-votes", "max_batch_size": 100, "max_batch_timeout": 60, "max_retries": 3, "dead_letter_queue": "isupmap-votes-dlq" } ] }, // Per-IP rate limiting for the public /api/* endpoints: 60 requests / 60s. // VOTE_RATE_LIMITER is tighter (10 req / 60 s) t
analytics-engine ↗
via the AE SQL API. // No setup needed — the dataset is created automatically on the first write. "analytics_engine_datasets": [ { "binding": "FETCH_ANALYTICS", "dataset": "isupmap_fetches" } ], "workers_dev": false, "preview_urls": false }
paid ↗
/** * For more details on how to configure Wrangler, refer to: * https://developers.cloudflare.com/workers/wrangler/configuration/ */ { "$schema": "node_modules/wrangler/config-schema.json", "name": "cf-isupordown", "main": "src/index.ts", "compatibility_date": "2026-05-30", "assets": { // The path to the directory containing the `index.html` file to be served at `/` "directory": "./public", // Expose assets to the Worker so it can rewrite /analytics.js at the edge. "binding": "ASSETS", // Run the Worker first for this one path so it can inject the GA4 ID from // the GA_ID var; every other asset is still served directly (asset-first). "run_worker_first": [ "/analytics.js" ] }, // Google Analytics 4 measurement ID, injected into /analytics.js at the edge. // Em
paid ↗
The Workers Paid plan includes Workers, Pages Functions, Workers KV, Hyperdrive, and Durable Objects usage for a minimum charge of $5 USD per month for an account. The plan includes increased initial usage allotments, with clear charges for usage that exceeds the base plan. There are no additional charges for data transfer (egress) or throughput (bandwidth).
paid ↗
| Rows read | 5 million / day | First 25 billion / month included + $0.001 / million rows |
paid ↗
| Keys read | 100,000 / day | 10 million/month, + $0.50/million |
paid ↗
| Standard operations | 10,000 operations/day included | 1,000,000 operations/month included + $0.40/million operations |
paid ↗
| **Workers Paid** | 10 million included per month <br> (+$0.25 per additional million) | 1 million included per month (+$1.00 per additional million) |
paid ↗
| [Subrequests](#subrequests) | 50/request | 10,000/request |
paid ↗
Currently, you will not be billed for your use of Workers Analytics Engine. Pricing information here is shared in advance, so that you can estimate what your costs will be once Cloudflare starts billing for usage in the coming months.
paid ↗
| Rows written | 100,000 / day | First 50 million / month included + $1.00 / million rows |
paid ↗
| Keys written | 1,000 / day | 1 million/month, + $5.00/million |
MIT ↗
MIT License Copyright (c) 2026 Jairon Landa Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions: The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software. THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNEC
architecture ↗
/** * For more details on how to configure Wrangler, refer to: * https://developers.cloudflare.com/workers/wrangler/configuration/ */ { "$schema": "node_modules/wrangler/config-schema.json", "name": "cf-isupordown", "main": "src/index.ts", "compatibility_date": "2026-05-30", "assets": { // The path to the directory containing the `index.html` file to be served at `/` "directory": "./public", // Expose assets to the Worker so it can rewrite /analytics.js at the edge. "binding": "ASSETS", // Run the Worker first for this one path so it can inject the GA4 ID from // the GA_ID var; every other asset is still served directly (asset-first). "run_worker_first": [ "/analytics.js" ] }, // Google Analytics 4 measurement ID, injected into /analytics.js at the edge. // Em
architecture ↗
//developers.cloudflare.com/workers/wrangler/configuration/ */ { "$schema": "node_modules/wrangler/config-schema.json", "name": "cf-isupordown", "main": "src/index.ts", "compatibility_date": "2026-05-30", "assets": { // The path to the directory containing the `index.html` file to be served at `/` "directory": "./public", // Expose assets to the Worker so it can rewrite /analytics.js at the edge. "binding": "ASSETS", // Run the Worker first for this one path so it can inject the GA4
architecture ↗
database_id automatically. // For manual deploys: run `npx wrangler d1 create isupmap` and paste the id here. "d1_databases": [ { "binding": "DB", "database_name": "isupmap", "database_id": "" }, // Separate D1 for community vote data — isolated so vote storms during an // outage don't serialise behind the authoritative status writes in DB. // Create: `npx wrangler d1 create isupmap-reports` and paste the id below. { "binding": "REPORTS_DB", "database_name": "isupmap-
architecture ↗
nd the /api/* routes read it, so reads never // touch D1. Replace the placeholder id below with your own — run // `npx wrangler kv namespace create SNAPSHOT_KV` and paste the id. Local dev // and tests simulate KV regardless of the id value. "kv_namespaces": [ { "binding": "SNAPSHOT_KV", "id": "00000000000000000000000000000000" } ], // Queue for buffering community vote writes. The consumer coalesces a burst // of votes into a handful of D1 inserts so the vote storm during an outage // do
architecture ↗
directly from the edge. // Create: `npx wrangler queues create isupmap-votes` (+ isupmap-votes-dlq). "queues": { "producers": [ { "binding": "VOTE_QUEUE", "queue": "isupmap-votes" } ], "consumers": [ { "queue": "isupmap-votes", "max_batch_size": 100, "max_batch_timeout": 60, "max_retries": 3, "dead_letter_queue": "isupmap-votes-dlq" } ] }, // Per-IP rate limiting for the public /api/* endpoints: 60 requests / 60s. // VOTE_RATE_LIMITER is tighter (10 req / 60 s) t
architecture ↗
via the AE SQL API. // No setup needed — the dataset is created automatically on the first write. "analytics_engine_datasets": [ { "binding": "FETCH_ANALYTICS", "dataset": "isupmap_fetches" } ], "workers_dev": false, "preview_urls": false }

Documented public demo screenshot · Jaironlanda/isupmap repository contributors; screenshot captured by Cloudsteading ↗. Depicts the upstream project. We have not deployed and tested a fresh installation here.

What it can replace

Compare the workflow you need. These mappings describe overlap; full feature parity requires a separate comparison.

Downdetector ↗

A service-status overview, incident history and community reports; differences in source coverage and outage-detection methodology mean it is not a like-for-like Downdetector replacement.

See supporting source ↗

Downdetector

external SaaS target

varies

→ Analytics Engine + D1 + KV

How it works

The shape of isUpMap on Cloudflare, and how it stacks up against the rented tools it replaces.

Architecture

Diagram of deployment declarations at the reviewed commit. Each app has its own entrypoint; declared resources do not prove runtime calls. Follow file and line sources below.

View upstream source ↗

Public interface

Configured entry points1

cf-isupordown

wrangler.jsonc

→

↓

App

cf-isupordown

entry

Cloudflare Workers

Entrypoint: src/index.tsConfigured cron (UTC): */5 * * * *

→

↓

Bindings

Analytics Engine · cf-isupordown

VOTE_QUEUE

Queues producer · cf-isupordown

isupmap-votes

Queues consumer · cf-isupordown

ASSETS

Static assets · cf-isupordown

Configuration and workflow sources

Reviewed commit 0b78646b79dc. Files were read as data; upstream applications and CI jobs were not executed.

Deployment configuration · 1 files

wrangler.jsonc ↗

Cloudflare Workers · compatibility 2026-05-30

cf-isupordown · default

Entrypoint: src/index.ts

Static assets: ./public · Worker first: ["/analytics.js"]

Cron triggers (UTC): */5 * * * *

DB → D1
REPORTS_DB → D1
SNAPSHOT_KV → KV
FETCH_ANALYTICS → Analytics Engine
VOTE_QUEUE → Queues (producer) · queue isupmap-votes
isupmap-votes → Queues (consumer) · queue isupmap-votes · dead letters isupmap-votes-dlq
ASSETS → Static assets

Named environments are separate deployments. Bindings are shown only where declared. Configured routes are URL patterns, not verified application endpoints.

Runtime source · handlers, binding usage and workflow steps

Observed TypeScript/JavaScript declarations from Worker entrypoints and resolved relative imports. Calls and workflow steps may run conditionally; their listed order is not a proven end-to-end request flow. Router declarations may be mounted under a prefix or may not be registered. This shows code wiring, not a successful deployment or runtime test. Dynamic wiring, aliases and generated code may not resolve.

src/index.ts ↗

L299 · fetch handler exported · references GA_ID, ASSETS, DB, VOTE_RATE_LIMITER, VOTE_SALT, SNAPSHOT_KV, VOTE_QUEUE, REPORTS_DB, PROTOMAPS_KEY · calls env.ASSETS.fetch, asset.text, source.replace, JSON.stringify, toString, cache.match, rateLimit, loadSnapshot, json, staleness, ctx.waitUntil, cache.put, resp.clone, kickColdStart, url.searchParams.get, summarize, shieldsBadge, Math.min, Math.max, Number, findService, recentIncidents, url.pathname.match, dailyUptime, days.reduce, request.headers.get, env.VOTE_RATE_LIMITER.limit, request.json, console.error, normalizeReason, countryOf, Date.now, hashIp, Math.floor, env.SNAPSHOT_KV.get, env.VOTE_QUEUE.send, env.SNAPSHOT_KV.put, readCount, aggregateReports, writeCount, markup, renderIncidentFeed, renderSitemap, Response.redirect, renderStatusIndex, renderNotFound, snapshot.services.find, Boolean, catch, renderServicePage
L577 · scheduled handler exported · references DB, REPORTS_DB · calls refreshSnapshot, when.getUTCHours, when.getUTCMinutes, Promise.all, pruneIncidents, pruneReports, console.log, console.error, String
L597 · queue handler exported · references REPORTS_DB, SNAPSHOT_KV · calls map, insertReports, rows.map, Promise.all, touched.map, aggregateReports, writeCount, console.error, String, batch.retryAll
L33 · json calls (conditional paths may differ): JSON.stringify
L79 · resolveAll calls (conditional paths may differ): Promise.allSettled, SERVICES.map, resolveStatus, settled.map
L104 · staleness calls (conditional paths may differ): Date.now, Math.max
L111 · warmingSnapshot calls (conditional paths may differ): SERVICES.map
L133 · decorateDisabled calls (conditional paths may differ): DISABLED_REASONS.get
L151 · loadSnapshot calls (conditional paths may differ): env.SNAPSHOT_KV.get, warmingSnapshot, snapshot.services.map, known.has, snapshot.services.push, decorateDisabled
L173 · refreshSnapshot calls (conditional paths may differ): resolveAll, persistSnapshot, readSnapshot, decorateReports, env.SNAPSHOT_KV.put, JSON.stringify
L190 · decorateReports calls (conditional paths may differ): detectSurges, reportSparklines, surges.get, sparks.get, spark.some, console.error
L214 · kickColdStart calls (conditional paths may differ): ctx.waitUntil, finally, catch, refreshSnapshot, console.error
L260 · summarize calls (conditional paths may differ): parts.push, parts.join
L291 · rateLimit calls (conditional paths may differ): request.headers.get, env.API_RATE_LIMITER.limit, json

Environment references: env.SNAPSHOT_KV · env.FETCH_ANALYTICS · env.DB · env.REPORTS_DB · env.API_RATE_LIMITER · env.GA_ID · env.ASSETS · env.VOTE_RATE_LIMITER · env.VOTE_SALT · env.VOTE_QUEUE · env.PROTOMAPS_KEY

src/db.ts ↗

L115 · persistSnapshot calls (conditional paths may differ): Date.now, db.batch, db.prepare, map, state.get, batch.push, upsertState.bind, prevCurrent.get, confirmStatus, JSON.stringify, upsertCurrent.bind, open.get, isIncident, openIncident.bind, closeIncident.bind, updateIncident.bind, bind, String
L189 · uptimeFraction calls (conditional paths may differ): Math.max, Math.min
L206 · readSnapshot calls (conditional paths may differ): Date.now, db.batch, db.prepare, bind, byService.get, list.push, byService.set, currentRows.map, safeParse, uptimeFraction, Number
L269 · dailyUptime calls (conditional paths may differ): Date.now, Math.floor, all, bind, db.prepare, Math.min, Math.max, result.push, slice, toISOString
L305 · recentIncidents calls (conditional paths may differ): all, bind, db.prepare, rows.results.map
L340 · pruneIncidents calls (conditional paths may differ): Date.now, run, bind, db.prepare
L345 · safeParse calls (conditional paths may differ): JSON.parse

src/pages.ts ↗

L29 · findService calls (conditional paths may differ): SERVICES.find
L33 · escapeHtml calls (conditional paths may differ): replace, value.replace
L74 · formatUpdated calls (conditional paths may differ): toLocaleString
L106 · layout calls (conditional paths may differ): escapeHtml, JSON.stringify
L187 · formatPercent calls (conditional paths may differ): Math.round
L192 · formatDay calls (conditional paths may differ): toLocaleString
L200 · renderUptimeCard calls (conditional paths may differ): history.reduce, join, history.map, formatDay, formatPercent
L228 · renderServicePage calls (conditional paths may differ): copy.sentence, escapeHtml, formatUpdated, statusPageUrl, renderUptimeCard, layout
L372 · renderStatusIndex calls (conditional paths may differ): byCategory.get, list.push, byCategory.set, join, map, byCategory.entries, services.sort, a.name.localeCompare, escapeHtml, layout
L413 · renderNotFound calls (conditional paths may differ): layout
L429 · renderSitemap calls (conditional paths may differ): SERVICES.map, join, urls.map
L445 · formatDuration calls (conditional paths may differ): Math.max, Math.round, Math.floor
L464 · renderIncidentFeed calls (conditional paths may differ): Date.now, incidents.reduce, Math.max, join, incidents.map, formatDuration, formatUpdated, escapeHtml, toISOString

src/reports.ts ↗

L103 · normalizeReason calls (conditional paths may differ): VALID_REASONS.has
L122 · insertReports calls (conditional paths may differ): db.prepare, db.batch, rows.map, stmt.bind, Math.floor
L167 · aggregateReports calls (conditional paths may differ): Date.now, Math.floor, db.batch, bind, db.prepare, map, countries.reduce, timeline.push, dayCounts.get, hourly.push, hourCounts.get
L237 · reportSparklines calls (conditional paths may differ): Date.now, Math.floor, all, bind, db.prepare, byService.get, hours.set, byService.set, arr.push, hours.get, out.set
L264 · pruneReports calls (conditional paths may differ): Date.now, run, bind, db.prepare
L336 · detectSurges calls (conditional paths may differ): Date.now, db.batch, bind, db.prepare, map, base.keys, counts.keys, counts.get, base.get, writes.push, upsert.bind, Math.max, Math.sqrt, out.set
L406 · hashIp calls (conditional paths may differ): encoder.encode, crypto.subtle.digest, join, map, Array.from, padStart, b.toString
L418 · readCount calls (conditional paths may differ): kv.get
L423 · writeCount calls (conditional paths may differ): kv.put, JSON.stringify

src/sources.ts ↗

L44 · fetchUpstream calls (conditional paths may differ): setTimeout, controller.abort, fetch, clearTimeout
L71 · fetchWithRetry calls (conditional paths may differ): Date.now, fetchUpstream, logFetch, delay, String
L148 · fetchStatuspage calls (conditional paths may differ): fetchWithRetry, base.replace, result, res.json, filter, map, components.filter, statuspageStatus
L188 · nodeText calls (conditional paths may differ): String
L195 · latestEntry calls (conditional paths may differ): Array.isArray, Date.parse, Number.isNaN, nodeText, title.trim, String
L252 · stageSignal calls (conditional paths may differ): description.replace, plain.matchAll, stages.add, toLowerCase, stages.has, DOWN_RE.test
L272 · leadingSignal calls (conditional paths may differ): re.exec, at, Math.min, DOWN_RE.test
L298 · classifyEntry calls (conditional paths may differ): exec, DOWN_RE.test, stageSignal, leadingSignal, RESOLVED_RE.test, ACTIVE_RE.test
L334 · fetchRss calls (conditional paths may differ): fetchWithRetry, result, latestEntry, xmlParser.parse, res.text, Date.now, toISOString, classifyEntry
L375 · fetchHttp calls (conditional paths may differ): Date.now, fetchWithRetry, result, BOT_WALL_CODES.has
L396 · resolveStatus calls (conditional paths may differ): result, fetchStatuspage, fetchRss, fetchHttp

src/analytics.ts ↗

L26 · logFetch calls (conditional paths may differ): ae.writeDataPoint

Build and deployment pipeline · 1 GitHub Actions workflows

Repository CI declarations, separate from runtime request processing. Job dependencies and conditions are shown as written; long commands are shortened with an ellipsis; a workflow file does not prove a recent successful run.

CI · .github/workflows/ci.yml ↗

Triggers: push, pull_request

check · no job dependencies declared

actions/checkout@v7actions/checkout@v7
actions/setup-node@v7actions/setup-node@v7
Shell commandnpm ci
Shell commandnpm run types
Shell commandnpm run typecheck
Shell commandnpm test

package.json ↗

deploy: wrangler deploy && wrangler d1 execute isupmap --remote --file=./schema.sql

Repository README

View original on GitHub ↗

Full upstream document by @Jaironlanda · README.md · snapshot 0b78646

isUpMap — Service Status Heatmap

Live: isUpMap (Official) Live: map.warmindex.com (Backup)

A live up / down heatmap for 80+ popular internet services, rendered as a stock-map style treemap with brand logos. Built on a single Cloudflare Worker: a Cron Trigger polls each service's official status and persists snapshots + an incident log to D1, and a static frontend renders the treemap with per-service uptime, an incident history, a command palette, light/dark themes, and a mobile-friendly detail sheet.

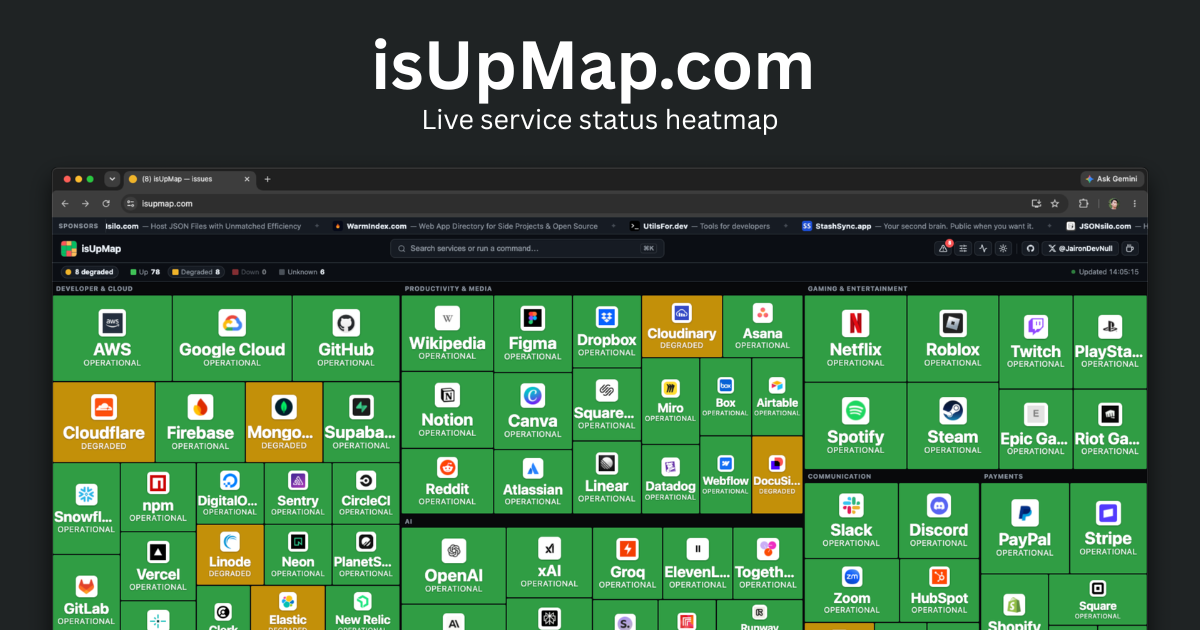

Heatmap example

Features

Treemap heatmap — services grouped into category "sectors", tiles sized by prominence and colored by status, each with a brand logo.
Per-service detail — tap a tile (mobile) or click it (desktop) for status, 24h/7d uptime, component rollup, active incident, status-page host, and a "Visit status page" link.
Incident history — server-recorded incidents (open/close/duration), persisted in D1 and shown in a side panel and per-service (last 2 shown).
90-day uptime history — Statuspage-style daily bars (colored by each day's worst incident status, with per-day uptime tooltips) plus the window average, derived from the incident log. Shown in the detail modal and on the SSR /status/<id> pages.
Community "report it's down" — users can vote a service is down with a reason (Can't connect, Errors, Can't log in, Slow, Other). Votes are deduplicated per IP-hash per 24 h, buffered through a Cloudflare Queue, and persisted in a separate D1. The per-service detail page shows aggregate counts, a 24-hour report-volume chart (Downdetector-style line + faint area over a shaded "typical range" band), per-country and per-reason breakdowns, and a Protomaps world map of recent report origins.
Report-surge detection — a Downdetector-style anomaly signal layered on the community reports. Each cron run scores a service's recent report volume against its own rolling baseline (EWMA mean + variance) and raises a surge when the count is a statistical outlier (≥3σ), clears an absolute floor (≥5 reports), and holds for 2 consecutive passes. A surging service is shown as a new "Reported" status color (orange) and a 24h sparkline on big tiles — supplementary only, it never opens an incident or alters the authoritative probe status. See detectSurges.
Command palette (⌘K) — fuzzy-search services and run commands.
Local customization — show/hide services or categories and a "problems only" filter, persisted in localStorage.
Notifications — in-page toasts on status changes, plus optional opt-in desktop notifications.
Atom incident feeds — subscribe to outages in any feed reader (or an RSS-to-alert tool): /feed.xml covers every service, /status/<id>/feed.xml covers one. Entries update in place when an incident resolves ("Resolved: GitHub was down for 25m").
Light / dark theme, deep links (?service=, ?filter=problems), and a favicon/title that reflect overall state.

How it works

Cron (every 5m) ─▶ scheduled() ─▶ resolveStatus() × N      ┌─▶ Statuspage JSON   ({base}/api/v2/summary.json)
                       │           (1 retry on a blip)      ├─▶ RSS / Atom feed   (fast-xml-parser)
                       │   (src/sources.ts) ────────────────┘
                       │                                    └─▶ HTTP reachability ping
                       │       each fetch attempt ──────────────▶ Analytics Engine (FETCH_ANALYTICS)
                       │                                          (service id, url, latency, status code, attempt)
                       ├─▶ persist to D1 (src/db.ts): flap-dampen → upsert `current`,
                       │   open/close `incidents`; daily retention sweep
                       ├─▶ decorateReports() — surge detection + 24h sparkline from REPORTS_DB
                       │   (supplementary; failure never blocks the status snapshot)
                       └─▶ publish finished snapshot to KV (SNAPSHOT_KV)
Browser (public/) ─poll /api/status every 45s─▶ Worker reads KV (Cache-API fronted) ─▶ treemap + uptime
                  └─open detail / panel ───────▶ GET /api/incidents (D1, cached)     ─▶ incident history

Community reports:
User taps "Report it's down" ─▶ POST /api/report/:id (VOTE_RATE_LIMITER: 10/60s per IP)
                                        │  hash IP → VOTE_QUEUE (Cloudflare Queue)
                                        └─▶ queue consumer → batch-insert into REPORTS_DB (D1)
GET /api/report/:id ─▶ KV hit (10-min TTL) → or D1 aggregate query → report JSON
                                                                       (total, countries, reasons,
                                                                        recent 10, 7-day timeline,
                                                                        24h hourly series, surge flag)
/status/:id page ─▶ server-rendered with Protomaps world map (report locations) + analytics panel

A Cron Trigger (*/5 * * * *) invokes scheduled(), which resolves every service concurrently (Promise.allSettled, each upstream guarded by a 15s timeout + edge caching, with one retry on a transient blip so a flaky connection doesn't read as unknown). It persists the result to D1, then publishes the finished snapshot to KV for the read path.
Flap-dampening (src/db.ts) — a non-up status must hold for 2 consecutive polls before it is committed to current or opens an incident; recovery to up is immediate, and an unknown (timed-out) probe holds the last status rather than resolving a real incident. A single glitchy upstream read therefore never paints a false outage. Resolved incidents older than 90 days are pruned once a day (~03:00 UTC).
GET /api/status is a fast KV read of the snapshot the cron publishes (no D1 query on the hot path), with per-service uptime (24h / 7d). It's fronted by the Cache API; before the first cron run it serves a "warming" snapshot (never a live fan-out). The response carries a stale flag (older than 3 cron cycles) so the UI warns instead of showing frozen data. Each service also carries a supplementary surge flag and a 24h report-volume spark series (added by the cron) that the UI uses for the "Reported" tile color and per-tile sparkline.
GET /api/incidents returns the recent incident log from D1 (Cache-API fronted). An optional ?service=<id> filter scopes it to a single service.
GET /api/uptime/:id returns a 90-day daily uptime series for one service ({ date, uptime, worst } per UTC day, oldest first, plus a uptime90 window average), computed from incident intervals — degraded counts against uptime, matching the 24h/7d numbers. Same Cache-API + rate-limit fronting as /api/incidents (5-min TTL). Approximations: days before a service was added read 100%, and an incident whose severity changed carries its final status for the whole interval.
GET /feed.xml (and per-service GET /status/<id>/feed.xml) serves the same incident log as an Atom feed for feed readers and RSS-to-alert tools. Entry ids are permanent and <updated> moves on resolution, so readers show recovery as an update to the same item rather than a duplicate. The dashboard and SSR pages advertise the feeds via <link rel="alternate"> autodiscovery. Cache-API fronted with a 5-min edge TTL (the cron cadence), so aggressive polling never reaches D1.
POST /api/report/:id accepts a community down-report ({ reason }) for a known service. The IP is hashed with VOTE_SALT (SHA-256; never stored raw), deduplicated per IP-hash per 24 h, and enqueued to VOTE_QUEUE for async batch-insert into REPORTS_DB. Tighter rate limit: 10 req / 60s per IP (VOTE_RATE_LIMITER). Returns 503 if VOTE_SALT is not set.
GET /api/report/:id returns aggregated community-report data for a service: 7-day total, per-country and per-reason breakdowns, up to 10 most-recent individual reports, a 7-day daily volume timeline, a 24h hourly series (for the report-volume chart), and the current surge flag. Cached in SNAPSHOT_KV (reportcount:<id>) with a 10-min TTL.
GET /api/summary returns a single overall-status rollup (worst status wins) plus a headline ("All systems operational" / "2 down, 1 degraded"), per-status counts, and the same stale flag — handy for compact embeds, badges, or a status banner. Add ?format=shields for a shields.io endpoint badge payload (status-colored), which powers the live badge at the top of this README. Same KV-read + Cache-API fronting as /api/status.
All API routes are rate-limited per IP (60 req / 60s) via a Workers rate-limit binding.
Crawlable pages — the dashboard is a client-rendered SPA, so for SEO the Worker also server-renders (no-JS) GET /status/<id> (per-service status + uptime + community report summary + Protomaps world map) and GET /status (a directory), plus a generated /sitemap.xml and a static robots.txt. These give crawlers real content for queries like "is GitHub down?". See src/pages.ts. The map and report widget assets are only shipped when the service actually has community report data (showMap flag).
The frontend (public/app.js) lays services out with a squarified treemap; tiles are sized by a per-service weight (layout only).

Status model

Every service is normalized to one of: up · degraded · down · unknown.

Source type	How status is derived
Statuspage	Reads `{base}/api/v2/summary.json` (Atlassian). `status.indicator` maps: `none`→`up`, `minor`/`maintenance`→`degraded`. A `major`/`critical` indicator is tempered by breadth — since the indicator reflects peak component severity, not how much is affected — so it only reads `down` when the major outage is broad (≥50% of components, or too few components to judge); a localized one (e.g. a single region) → `degraded`. The summary also yields component rollups and active incidents for the detail view.
RSS / Atom	Parses the latest feed entry (via `fast-xml-parser`). Entries older than 48h are treated as resolved (`up`). A fresh entry mentioning resolved/restored/operational → `up`; outage/down/major/critical → `down`; anything else fresh → `degraded`. Heuristic.
HTTP ping	A plain `GET`. `2xx`/`3xx` → `up`; other response → `degraded`; network error or timeout → `down`.
(any)	A failed fetch or timeout → `unknown` (treated as "no data" — never opens an incident or counts as downtime).

Statuspage JSON is authoritative where available. RSS-based status is a best-effort heuristic, since incident feeds describe history rather than a current-state field.

There is also a display-only fifth state, reported (orange): shown when the probe says up/unknown but community reports are surging (see Report-surge detection). It's derived at render time from the surge flag and never replaces a service's real status — a confirmed down/degraded always wins, and incidents and uptime stay 100% probe-driven.

Data sources

All data comes from each service's own public status page / feed. IsUpMap is a read-only aggregator and is not affiliated with any of these services. The list lives in src/services.ts; for Statuspage entries the /api/v2/summary.json path is appended to the base shown below.

Rows marked ⊘ disabled have an upstream that no longer publishes a usable machine-readable feed, so their status can't be resolved. They are shown as permanently unknown (grey), hidden from the heatmap, and appear locked in the Customize panel with the reason on hover — see Disabled services below.

Service	Category	Source	Endpoint / base
GitHub	Developer & Cloud	Statuspage	`https://www.githubstatus.com`
Cloudflare	Developer & Cloud	Statuspage	`https://www.cloudflarestatus.com`
npm	Developer & Cloud	Statuspage	`https://status.npmjs.org`
DigitalOcean	Developer & Cloud	Statuspage	`https://status.digitalocean.com`
Vercel	Developer & Cloud	Statuspage	`https://www.vercel-status.com`
Netlify	Developer & Cloud	Statuspage	`https://www.netlifystatus.com`
MongoDB	Developer & Cloud	Statuspage	`https://status.mongodb.com`
Sentry	Developer & Cloud	Statuspage	`https://status.sentry.io`
CircleCI	Developer & Cloud	Statuspage	`https://status.circleci.com`
Linode	Developer & Cloud	Statuspage	`https://status.linode.com`
Render	Developer & Cloud	Statuspage	`https://status.render.com`
AWS	Developer & Cloud	RSS	`https://status.aws.amazon.com/rss/all.rss`
Google Cloud	Developer & Cloud	RSS	`https://status.cloud.google.com/en/feed.atom`
Microsoft Azure	Developer & Cloud	RSS · ⊘ disabled	`https://azure.status.microsoft/en-us/status/feed/`
Supabase	Developer & Cloud	Statuspage	`https://status.supabase.com`
Fly.io	Developer & Cloud	Statuspage	`https://status.flyio.net`
Railway	Developer & Cloud	RSS · ⊘ disabled	`https://railway.betteruptime.com/feed.rss`
Neon	Developer & Cloud	RSS	`https://neonstatus.com/pages/6878fc85709daa75be6c7e3c/rss`
PlanetScale	Developer & Cloud	Statuspage	`https://www.planetscalestatus.com`
Bunny.net	Developer & Cloud	Statuspage	`https://status.bunny.net`
Auth0	Developer & Cloud	Statuspage · ⊘ disabled	`https://auth0.statuspage.io`
Clerk	Developer & Cloud	Statuspage	`https://status.clerk.com`
HashiCorp	Developer & Cloud	Statuspage	`https://status.hashicorp.com`
Snowflake	Developer & Cloud	Statuspage	`https://status.snowflake.com`
Elastic	Developer & Cloud	Statuspage	`https://status.elastic.co`
New Relic	Developer & Cloud	Statuspage	`https://status.newrelic.com`
Grafana	Developer & Cloud	Statuspage	`https://status.grafana.com`
PagerDuty	Developer & Cloud	RSS · ⊘ disabled	`https://status.pagerduty.com/history.rss`
Algolia	Developer & Cloud	RSS · ⊘ disabled	`https://status.algolia.com/history.rss`
GitLab	Developer & Cloud	RSS	`https://status.gitlab.com/pages/5b36dc6502d06804c08349f7/rss`
Docker	Developer & Cloud	RSS	`https://www.dockerstatus.com/pages/533c6539221ae15e3f000031/rss`
Appwrite	Developer & Cloud	RSS	`https://status.appwrite.online/feed.rss`
Firebase	Developer & Cloud	RSS (Atom)	`https://status.firebase.google.com/en/feed.atom`
Firecrawl	Developer & Cloud	RSS	`https://status.firecrawl.dev/feed.rss`
OpenAI	AI	RSS	`https://status.openai.com/feed.rss`
Anthropic	AI	Statuspage	`https://status.claude.com`
xAI	AI	RSS	`https://status.x.ai/feed.xml`
Groq	AI	Statuspage	`https://groqstatus.com`
ElevenLabs	AI	Statuspage	`https://status.elevenlabs.io`
Cohere	AI	Statuspage	`https://status.cohere.com`
Replicate	AI	Statuspage	`https://www.replicatestatus.com`
Pinecone	AI	Statuspage	`https://status.pinecone.io`
Runway	AI	Statuspage	`https://status.runwayml.com`
Hugging Face	AI	RSS	`https://status.huggingface.co/feed.rss`
Together AI	AI	RSS	`https://status.together.ai/feed.rss`
Perplexity	AI	RSS	`https://status.perplexity.com/default/history.rss`
Stability AI	AI	Statuspage	`https://status.stability.ai`
Deepgram	AI	Statuspage	`https://status.deepgram.com`
AssemblyAI	AI	Statuspage	`https://status.assemblyai.com`
Cursor	AI	RSS	`https://status.cursor.com/history.rss`
Cerebras	AI	Statuspage	`https://status.cerebras.ai`
Fireworks AI	AI	RSS	`https://status.fireworks.ai/feed.rss`
DeepSeek	AI	Statuspage	`https://status.deepseek.com`
Mistral AI	AI	HTTP ping	`https://status.mistral.ai`
Stripe	Payments	Statuspage	`https://www.stripestatus.com`
Coinbase	Payments	Statuspage	`https://status.coinbase.com`
Shopify	Payments	Statuspage	`https://www.shopifystatus.com`
Plaid	Payments	Statuspage	`https://status.plaid.com`
Paddle	Payments	Statuspage	`https://paddlestatus.com`
Lemon Squeezy	Payments	RSS · ⊘ disabled	`https://ohdear.app/status-page/lemon-squeezy-status/subscribe-rss`
Square	Payments	Statuspage	`https://www.issquareup.com`
Klarna	Payments	Statuspage	`https://status.klarna.com`
PayPal	Payments	RSS	`https://www.paypal-status.com/feed/rss`
Discord	Communication	Statuspage	`https://discordstatus.com`
Slack	Communication	RSS	`https://slack-status.com/feed/rss`
Zoom	Communication	Statuspage	`https://www.zoomstatus.com`
Twilio	Communication	Statuspage	`https://status.twilio.com`
SendGrid	Communication	Statuspage	`https://status.sendgrid.com`
Resend	Communication	Statuspage	`https://resend-status.com`
Mailgun	Communication	Statuspage	`https://status.mailgun.com`
Intercom	Communication	Statuspage	`https://www.intercomstatus.com`
HubSpot	Communication	Statuspage	`https://status.hubspot.com`
Atlassian	Productivity & Media	Statuspage	`https://status.atlassian.com`
Dropbox	Productivity & Media	Statuspage	`https://status.dropbox.com`
Datadog	Productivity & Media	Statuspage	`https://status.datadoghq.com`
Figma	Productivity & Media	Statuspage	`https://status.figma.com`
Box	Productivity & Media	Statuspage	`https://status.box.com`
Squarespace	Productivity & Media	Statuspage	`https://status.squarespace.com`
Wikipedia	Productivity & Media	HTTP ping	`https://www.wikipedia.org`
Linear	Productivity & Media	Statuspage	`https://linearstatus.com`
Notion	Productivity & Media	Statuspage	`https://www.notion-status.com`
Cloudinary	Productivity & Media	Statuspage	`https://status.cloudinary.com`
Asana	Productivity & Media	Statuspage	`https://status.asana.com`
Airtable	Productivity & Media	Statuspage	`https://status.airtable.com`
Miro	Productivity & Media	Statuspage	`https://status.miro.com`
Canva	Productivity & Media	Statuspage	`https://www.canvastatus.com`
Webflow	Productivity & Media	Statuspage	`https://status.webflow.com`
DocuSign	Productivity & Media	Statuspage	`https://status.docusign.com`
Twitch	Gaming & Entertainment	Statuspage	`https://status.twitch.com`
Epic Games	Gaming & Entertainment	Statuspage	`https://status.epicgames.com`
Netflix	Gaming & Entertainment	HTTP ping	`https://www.netflix.com`
Roblox	Gaming & Entertainment	RSS	`https://status.roblox.com/pages/59db90dbcdeb2f04dadcf16d/rss`
Steam	Gaming & Entertainment	HTTP ping	`https://store.steampowered.com`
PlayStation Network	Gaming & Entertainment	HTTP ping	`https://www.playstation.com`
Riot Games	Gaming & Entertainment	HTTP ping	`https://www.riotgames.com`
Spotify	Gaming & Entertainment	HTTP ping	`https://open.spotify.com`
X (Twitter)	Social Media	HTTP ping	`https://x.com`
Facebook	Social Media	HTTP ping	`https://www.facebook.com`
Instagram	Social Media	HTTP ping	`https://www.instagram.com`
YouTube	Social Media	HTTP ping	`https://www.youtube.com`
TikTok	Social Media	HTTP ping	`https://www.tiktok.com`
WhatsApp	Social Media	HTTP ping	`https://www.whatsapp.com`
LinkedIn	Social Media	HTTP ping	`https://www.linkedin.com`
Telegram	Social Media	HTTP ping	`https://telegram.org`
Reddit	Social Media	Statuspage	`https://www.redditstatus.com`
Pinterest	Social Media	HTTP ping	`https://www.pinterest.com`
Snapchat	Social Media	HTTP ping	`https://www.snapchat.com`
Bluesky	Social Media	HTTP ping	`https://bsky.app`
Threads	Social Media	HTTP ping	`https://www.threads.net`
Mastodon	Social Media	HTTP ping	`https://mastodon.social`
Tumblr	Social Media	HTTP ping	`https://www.tumblr.com`

Disabled services

A service is disabled when its upstream no longer provides a status feed we can trust — it stopped publishing a machine-readable feed, or the feed reports stale / incorrect state. Rather than show a stale or misleading status, a disabled service is set to unknown (grey), kept out of the heatmap, and listed — locked and labelled disabled, with the reason on hover — in the Customize panel. The resolver skips disabled services entirely (no fetch). To disable one, add a disabled: "<reason>" string to its entry in src/services.ts.

Currently disabled (upstream no longer exposes a machine-readable feed, verified 2026-06-05):

Service	Reason
Microsoft Azure	Global status feed publishes no machine-readable incident items (empty channel).
Auth0	Statuspage JSON (`auth0.statuspage.io`) is stale — reports a phantom "minor outage" with no active incident while the live page shows all operational.
Railway	Migrated to a JS-rendered status page (`status.railway.com`); the old Betterstack feed is empty.
PagerDuty	`history.rss` now returns an HTML page instead of XML.
Algolia	`history.rss` now returns an HTML page instead of XML.
Lemon Squeezy	The Oh Dear feed URL now serves an HTML subscribe page instead of a feed.

To add a service, append an entry to src/services.ts with its category, a weight (tile size), and a source. Brand logos are self-hosted: add the service id to LOGO_DOMAIN (public/app.js) and drop a matching <id>.png (a ~128px favicon) in public/images/logo/services/.

Tips: Statuspage hosts often 302-redirect to a canonical domain (e.g. status.zoom.us → www.zoomstatus.com) — use the canonical host to avoid an extra hop. Some hosts (e.g. status.x.ai) put the JSON behind a Cloudflare bot challenge; use their RSS feed instead.

Security

Rate limiting — /api/* is capped at 60 requests / 60s per IP (API_RATE_LIMITER); the vote endpoint (POST /api/report/:id) has its own tighter cap of 10 requests / 60s per IP (VOTE_RATE_LIMITER); over-limit returns 429.
IP privacy — the vote path never stores raw IPs. The IP is SHA-256-hashed with a VOTE_SALT secret before storage; without a real salt the endpoint returns 503 rather than persisting a reversible hash.
Vote deduplication — one vote per IP-hash per service per 24-hour bucket (enforced by a D1 primary key), so burst-voting during an outage doesn't inflate counts.
Caching — /api/status, /api/summary, /api/incidents, and /api/report/:id are wrapped in the Cache API or KV; D1 stays off the hot read path for all of these.
Headers / CSP — public/_headers sets a strict Content-Security-Policy (no inline scripts), X-Content-Type-Options, X-Frame-Options, Referrer-Policy, and Permissions-Policy on static assets; the Worker adds nosniff + Referrer-Policy to API responses. The /status/:id page uses a relaxed CSP (script-src 'self') only when the report widget and map are present; all other server-rendered pages use script-src 'none'.

Analytics

Frontend (GA4)

Google Analytics (GA4) is wired in public/analytics.js and loads only in production — it's gated to non-localhost hosts (so it's off during wrangler dev) and injected from a same-origin module to avoid an inline script under the CSP. Update or remove GA_ID there to change it.

Upstream fetch analytics (Workers Analytics Engine)

Every upstream fetch attempt made by the cron is logged to a Workers Analytics Engine dataset (isupmap_fetches) via the FETCH_ANALYTICS binding (see src/analytics.ts). This gives a queryable record of each HTTP call the Worker makes — useful for spotting slow status pages, tracking retry rates, and debugging unknown spikes.

Schema (query via wrangler analytics-engine sql or the AE SQL API):

Column	Type	Description
`timestamp`	auto	When the fetch was made
`index1`	string	Service ID (use in `WHERE` / `GROUP BY`)
`blob1`	string	URL fetched
`blob2`	string	Source type: `statuspage` · `rss` · `http`
`blob3`	string	Error message (empty string on success)
`double1`	number	HTTP status code (0 for network / timeout errors)
`double2`	number	Round-trip latency in milliseconds
`double3`	number	Attempt index (0 = first try, 1 = retry)
`double4`	number	1 if the response was `ok` (2xx), 0 otherwise

Example queries:

-- Average latency per service over the last hour
SELECT index1 AS service, avg(double2) AS avg_latency_ms, count() AS fetches
FROM isupmap_fetches
WHERE timestamp > NOW() - INTERVAL '1' HOUR
GROUP BY service ORDER BY avg_latency_ms DESC;

-- Retry rate per source type
SELECT blob2 AS source_type,
       sum(double3) AS retries,
       count() AS total,
       round(sum(double3) / count() * 100, 1) AS retry_pct
FROM isupmap_fetches
WHERE timestamp > NOW() - INTERVAL '24' HOUR
GROUP BY source_type;

-- Services with the most errors in the last day
SELECT index1 AS service, count() AS errors
FROM isupmap_fetches
WHERE double4 = 0 AND timestamp > NOW() - INTERVAL '24' HOUR
GROUP BY service ORDER BY errors DESC LIMIT 20;

Development

Command	Purpose
`npm install`	Install dependencies (`fast-xml-parser`, `wrangler`).
`npm run db:schema:local`	Apply `schema.sql` to the local status D1 (run once before first dev).
`npm run db:schema:reports:local`	Apply `schema-reports.sql` to the local reports D1.
`npm run dev`	Local dev server at `http://localhost:8787`.
`npm run dev:cron`	Dev server with `--test-scheduled` so the cron can be triggered locally.
`npm run types`	Regenerate Worker types (`wrangler types`) after editing `wrangler.jsonc`.
`npm run typecheck`	`tsc --noEmit`.
`npm run deploy`	Deploy to Cloudflare.

Trigger the cron and inspect the API locally:

npm run dev:cron
curl "http://localhost:8787/__scheduled"      # runs scheduled() once → persists to D1 + publishes to KV
curl -s http://localhost:8787/api/status | jq # served from KV, includes per-service uptime + stale flag
curl -s http://localhost:8787/api/incidents | jq
curl -s http://localhost:8787/api/summary | jq # overall status rollup + headline
curl -s http://localhost:8787/api/uptime/github | jq # 90-day daily uptime series
curl -s http://localhost:8787/feed.xml         # Atom feed of the incident log

Local cron note: under plain wrangler dev, the documented /cdn-cgi/handler/scheduled test route currently throws a DataCloneError: ... ScheduledController (a wrangler local-shim bug). Use npm run dev:cron (--test-scheduled) and the /__scheduled route instead. Production crons invoke scheduled() natively and are unaffected.

Deploying

Deploy Button (recommended)

Click the button at the top of this README. Cloudflare will fork the repo, provision a D1 database, and deploy — no manual config needed.

After deploy, attach a custom domain / route in the Cloudflare dashboard (or add a routes entry to wrangler.jsonc), since workers_dev: false disables the *.workers.dev URL.

Manual deploy

npx wrangler d1 create isupmap                                   # status DB; paste the printed id into wrangler.jsonc
npx wrangler d1 create isupmap-reports                           # community reports DB; paste the id into wrangler.jsonc
npx wrangler kv namespace create SNAPSHOT_KV                     # snapshot cache; paste the id into wrangler.jsonc
npx wrangler queues create isupmap-votes                         # vote queue
npx wrangler queues create isupmap-votes-dlq                     # dead-letter queue
wrangler secret put VOTE_SALT                                    # random string; protects IP hashes from reversal
npm run deploy                                                   # deploys the Worker + applies schema.sql to the remote D1
npm run db:schema:reports:remote                                 # applies schema-reports.sql to REPORTS_DB

Re-run npm run db:schema:remote / db:schema:reports:remote after adding indexes/tables (CREATE … IF NOT EXISTS is idempotent).

Set PROTOMAPS_KEY (via wrangler secret put or in wrangler.jsonc) to enable the world map on /status/:id pages. A free key is available at protomaps.com. Leave it empty to skip the map.

Rate-limit binding

wrangler.jsonc declares a rate-limit binding with namespace_id: 1001. This number is an arbitrary local identifier — you do not need to create or change it; Cloudflare provisions the binding automatically on deploy.

Project structure

public/            Static frontend (served directly by Cloudflare)
  index.html         Page shell: header/toolbar, treemap, panels, detail modal, palette
  styles.css         Treemap palette, hover card, panels, command palette, bottom sheet, themes
  app.js             Poll loop, treemap, logos, detail sheet, palette, customization, toasts
  report.js          Community report widget + Protomaps world map (loaded on /status/:id only)
  report.css         Styles for the report widget and world-map layout
  analytics.js       GA4 loader, production-only
  robots.txt         Crawl rules + sitemap pointer
  _headers           Security headers / CSP for static assets
  images/            OG image + self-hosted service icons (logo/services/<id>.png)
  lib/               Vendored MapLibre GL and Protomaps basemap assets (world map rendering)
src/
  index.ts           Worker entry: scheduled() cron + rate-limited/cached /api/* + SSR /status pages, /sitemap.xml & Atom /feed.xml
  services.ts        Curated service list + status data sources + shared types
  sources.ts         Per-source-type fetch + normalize (Statuspage/RSS/HTTP); logs each attempt to AE
  analytics.ts       logFetch() helper — writes per-attempt fetch events to the Analytics Engine dataset
  db.ts              D1 persistence: flap-dampening, snapshot upserts, incident transitions, uptime, retention
  pages.ts           Server-rendered status pages (/status, /status/<id>) + sitemap.xml
  reports.ts         Community report logic: write/read/aggregate, 24h sparkline + surge detection (REPORTS_DB + SNAPSHOT_KV cache)
schema.sql           D1 schema (current / incidents / meta / probe_state) + indexes
schema-reports.sql   D1 schema for REPORTS_DB (reports + report_baseline tables + index)
wrangler.jsonc       Worker config (main, assets, cron, D1 × 2, KV, Queues, rate limits × 2, Analytics Engine)

Notes & limitations

Persistence lives in two D1 databases. DB (status): the current snapshot (one row per service), an incidents log (one row per non-up episode), and a meta row for the last run. Uptime is derived from incident intervals — no high-volume per-poll table — and incident queries are index-backed. REPORTS_DB (community reports): one row per vote (service_id, ip_hash, bucket PK); isolated so vote storms during an outage don't compete with status writes.
Queue (VOTE_QUEUE) — vote POSTs are enqueued and flushed in batches (up to 100 messages, 60s max wait) by the consumer, so a burst of reports during an outage resolves to a handful of D1 inserts rather than one per request.
History horizons — resolved incidents are pruned after 90 days (RETENTION_MS in src/db.ts); community report rows after 30 days (RETENTION_MS in src/reports.ts); raise either for longer history.
Granularity — status/uptime update every 5 minutes (the cron cadence); the UI polls every 45s and serves cached data in between.
RSS status is heuristic (see the status-model table).
cf: { cacheTtl } edge caching and the Cache API are no-ops/limited under wrangler dev, so local runs hit upstreams live on each cache miss; production caches aggressively. The native rate limiter is eventually-consistent and per-location, so its cutoff is best-effort rather than an exact count.

	Sponsor	Description
	StashSync.app	Your second brain. Public when you want it.
	JSONsilo.com	Host JSON Files with Unmatched Efficiency
	WarmIndex.com	Web App Directory for Side Projects & Open Source
	UtilsFor.dev	Tools for developers

Frequently asked about isUpMap

What is isUpMap?+

isUpMap is a self-hosted Downdetector alternative built on the Cloudflare developer platform. An internet-service status heatmap with incident history and community reports

What does isUpMap replace?+

isUpMap is listed as an alternative to Downdetector. Compare the features and tradeoffs before migrating.

What Cloudflare primitives does isUpMap use?+

isUpMap is built on Analytics Engine, D1, KV, Queues, Workers.

How much does isUpMap cost to run?+

Budget Workers Paid from $5 USD/account/month for the documented 80+service polling fan-out: Worker Free allows only 50 external subrequests per invocation. D1, KV and vote-queue quotas also apply. Analytics Engine currently has a Free allowance and is not billed, according to its current primary pricing page; optional maps have independent limits. Provide a strong VOTE_SALT, your own D1/KV/Queue resources and a production route; workers.dev is disabled in the committed config. Optional Protomaps maps and GA4 tracking are disabled without their settings. The captured deployment has not been executed or load-tested. Source and configuration review establishes a deployment path and conditional costs; this candidate was not executed or load-tested. Check current Cloudflare pricing before deploying.

Is isUpMap open source?+

The upstream repository declares the MIT license. Read its terms at https://raw.githubusercontent.com/Jaironlanda/isupmap/0b78646b79dc7a635f0aae98a942b5003322eff6/LICENSE. Source code and contributor credit are available at https://github.com/Jaironlanda/isupmap.

Discussion · 0

No comments yet — be the first.

isUpMap

Source & license

License TL;DR

Repository owner

Cloudflare hosting

What it can replace

Architecture

Configuration and workflow sources

isUpMap — Service Status Heatmap

Features

How it works

Status model

Data sources

Disabled services

Security

Analytics

Frontend (GA4)

Upstream fetch analytics (Workers Analytics Engine)

Development

Deploying

Deploy Button (recommended)

Manual deploy

Rate-limit binding

Project structure

Notes & limitations

Sponsors

Frequently asked about isUpMap
